8 August 2016 . 9am . Monday . Build Tech Chapter : Roof

21:09 Unknown 0 Comments

15th August (next Mon)
1. Sebastian's assignment due date
2. Field trip to kampung baru. Call time 9.30 at college lobby

22nd August (retest)
For those who absent or failed the mid term test, kindly make yourself available to resit.


Building tech n site survey marks allocation
1. Assignment 30%
2. Mid term test 20%
3. Final exam 50%

Functional

Sheltering element must control

• passage of moisture vapor
• infiltration of air
• drain rainwater to system of drains and gutless
• flow of heat and solar radiation
• resist spread of fire

how to reduce heat enter the house?
stop the HEAT GAIN then only reduce the heat sprinkle
dome

structural element must

• spand across space
• carry its own weight
• flat roof
• resist lateral and uplifting forces

roof rainwater system
a system of gutters, channels and pipes which collects water from roofs and conveys it to a drainage system

rainwater or roof gutter
a slightly sloping channel or pipe at roof eaves ect to collect rainwater from a roof surface and convey it to downpipe

rainwater spout or gargoyle
a piped fitting to direct rainwater from a gutter or roof surface away from the roof and wall surfaces of building

Rainwater spout with downpipe

Rainwater spout with gargoyle

Insulation and Rain Protection

• thermal and fire insulation and roof ventilation
• rainwater system at eaves

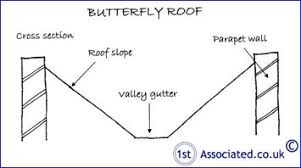

Type of Roof - Shape

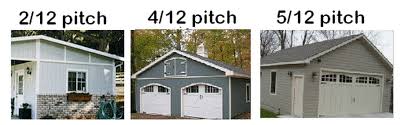

• 2 main type of roof slop ( pitch ) roof and flat roof
• shape of a roof will determine what materials should be usd on its structure and covering
• each form demands different performance of structure and covering

• a shallow inclination is always needed for rainwater to flow
• continuous or impermeable membrane materiel to prevent water leakage.
